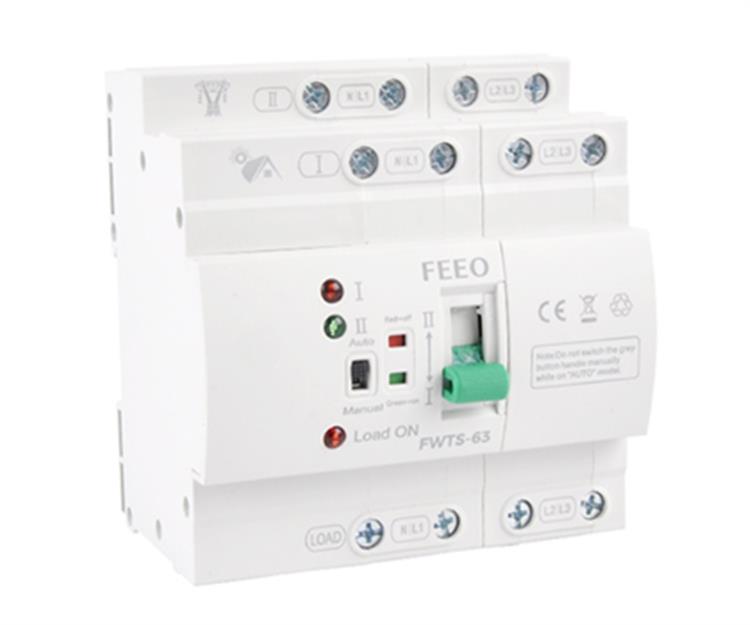

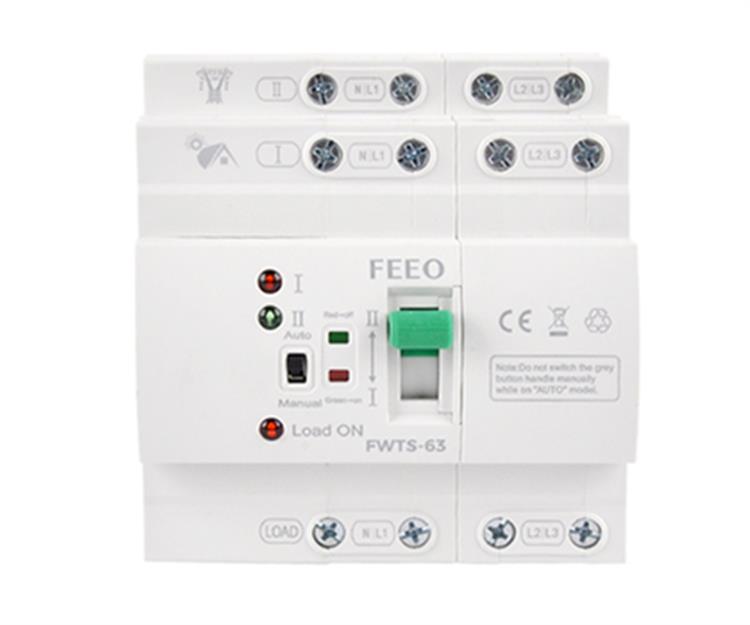

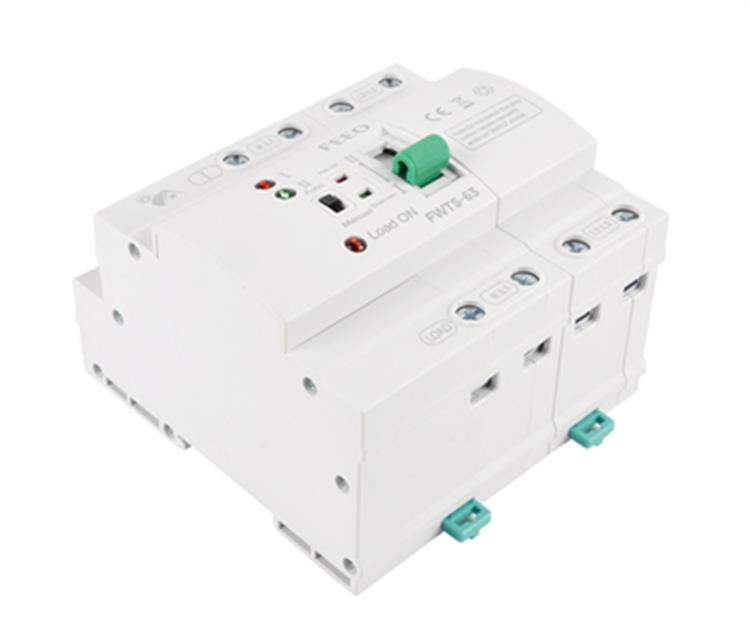

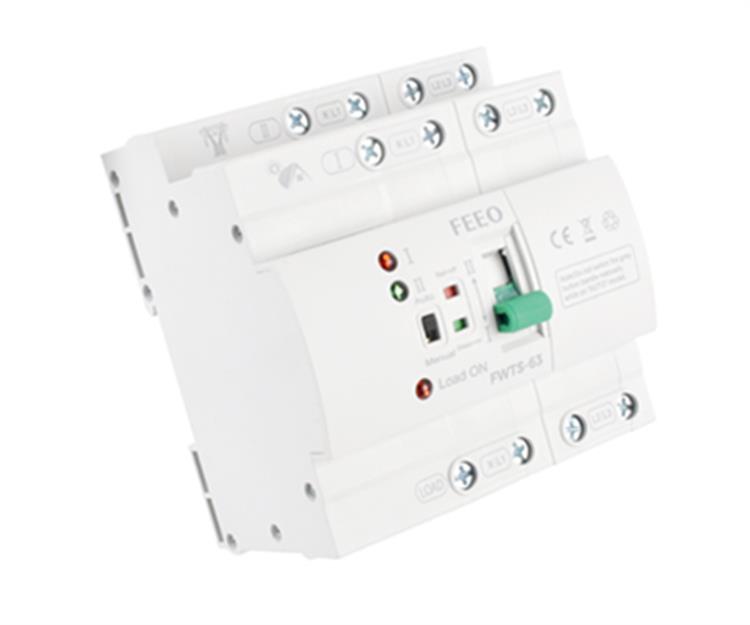

Product Overview:

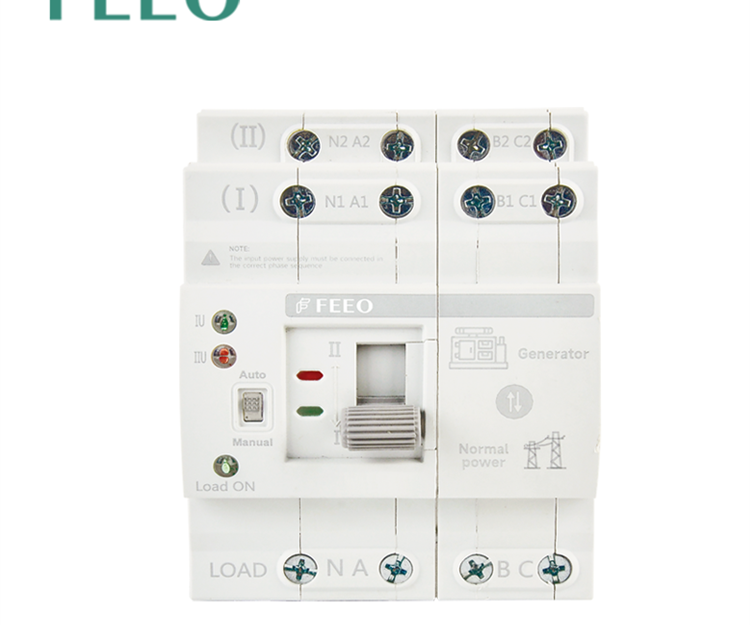

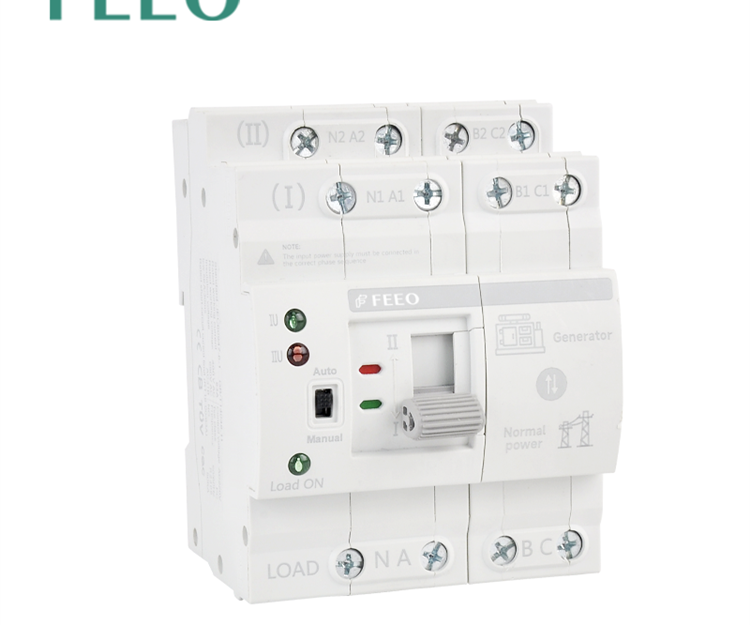

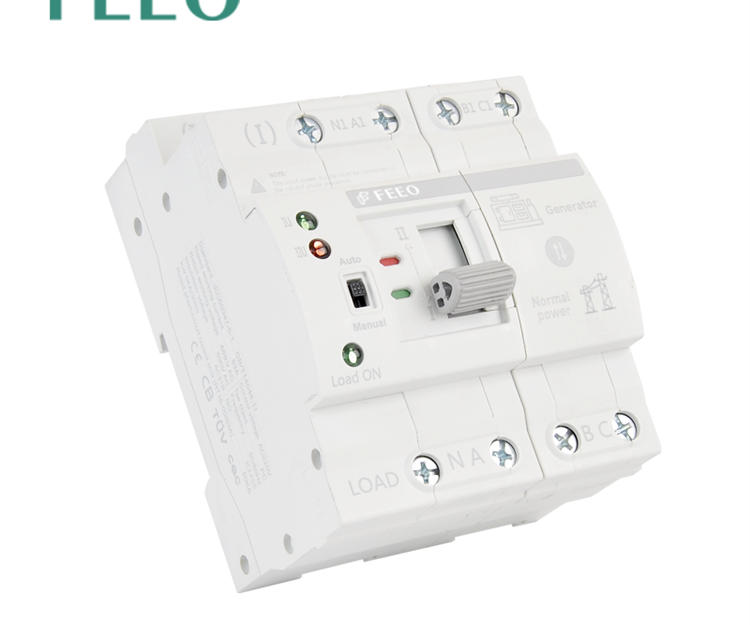

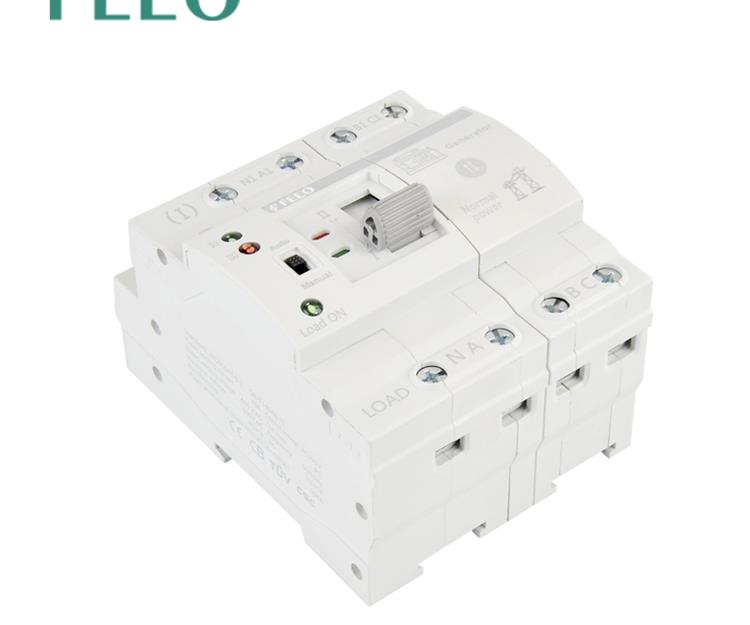

FWTS-63 automatic transfer switch is a PC class infrequent change-over switch, with two-station design (commonly used for A and standby for B), suitable for AC systems with AC 50-60hz and rated current 6A-63A. The main function of the automatic transfer switch is when the main power (common power supply A) fails, the ATS will automatically switch to the backup power (Backup power supply B) to continue working (switching speed <50 milliseconds), which can effectively solve the troubles caused by power outages.
|

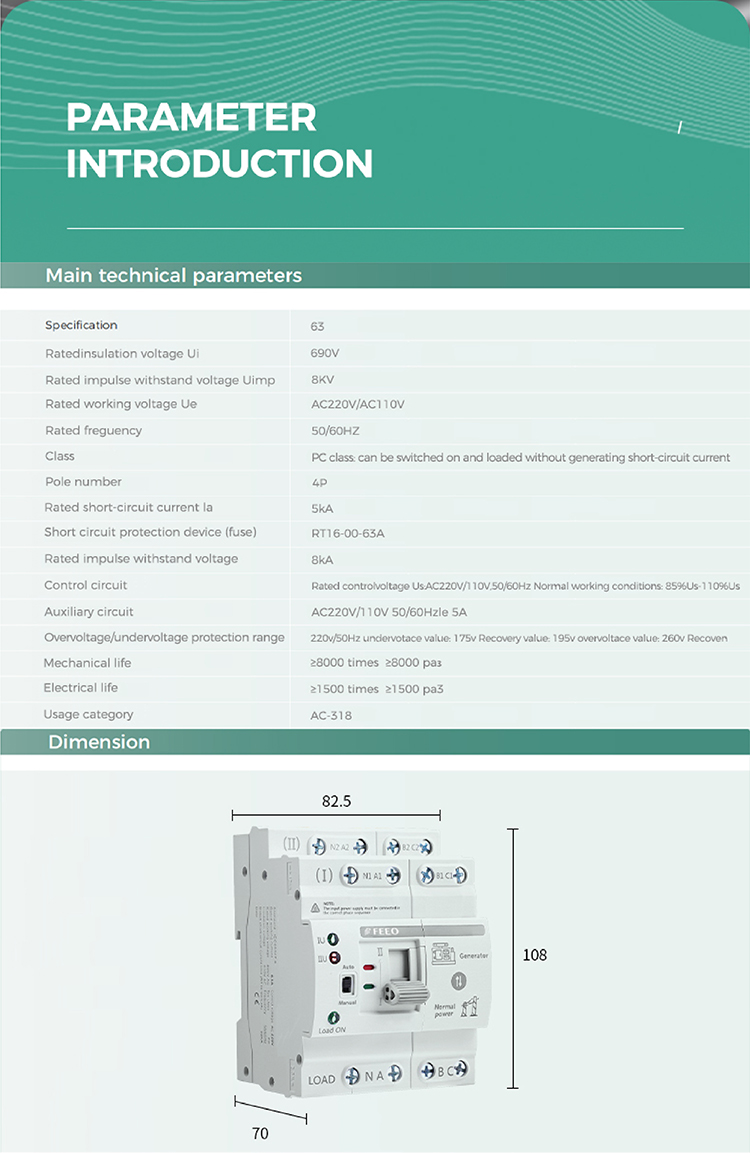

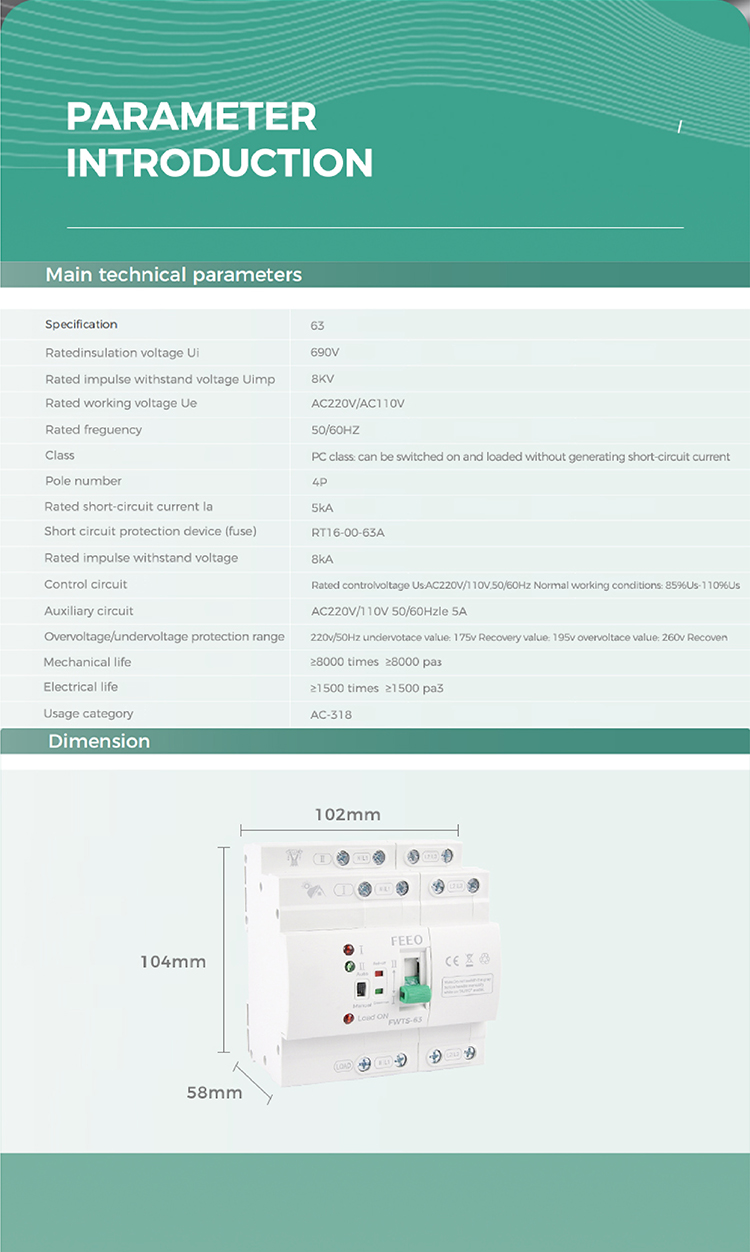

Specification |
63A |
|
Ratedinsulation voltage Ui |
690V |
|
Rated Impulse Withstand Voltage Uimp |
8KV |
|
Rated working voltage Ue |
AC220V/110V |
|
Rated freguency |
50/60HZ |
|
Rated short-circuit current la |
5KA |
|
Rated impulse withstand voltage |
8KA |
