Product Description

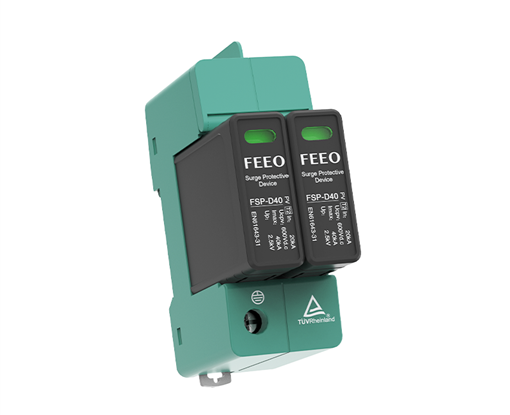

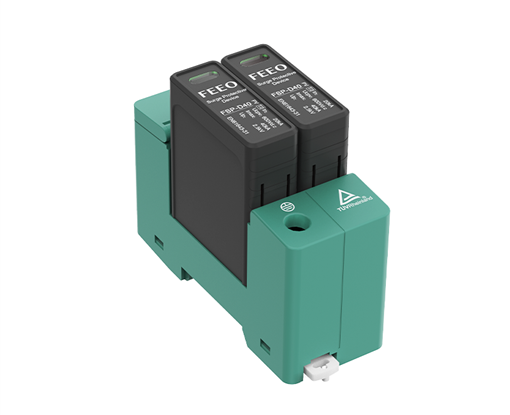

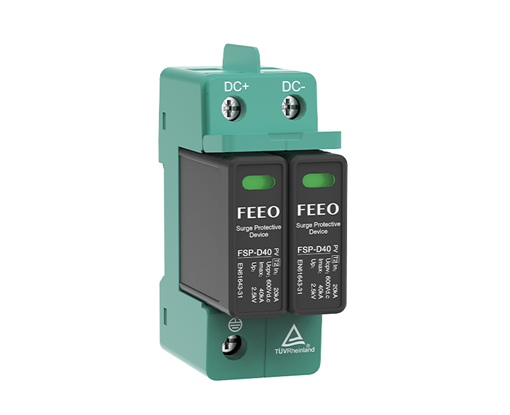

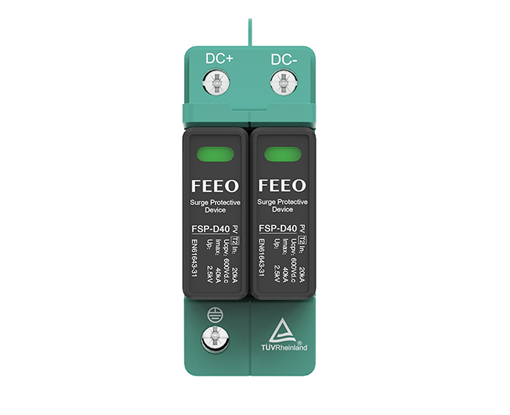

Solar 2P DC SPD Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the dc networks to be protected and provide common
and different modes protection. Its installed location are recommended at both ends of the dc
power supply line (solar panel side and inverter/converter side), especially if the line routing is
external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Product Features

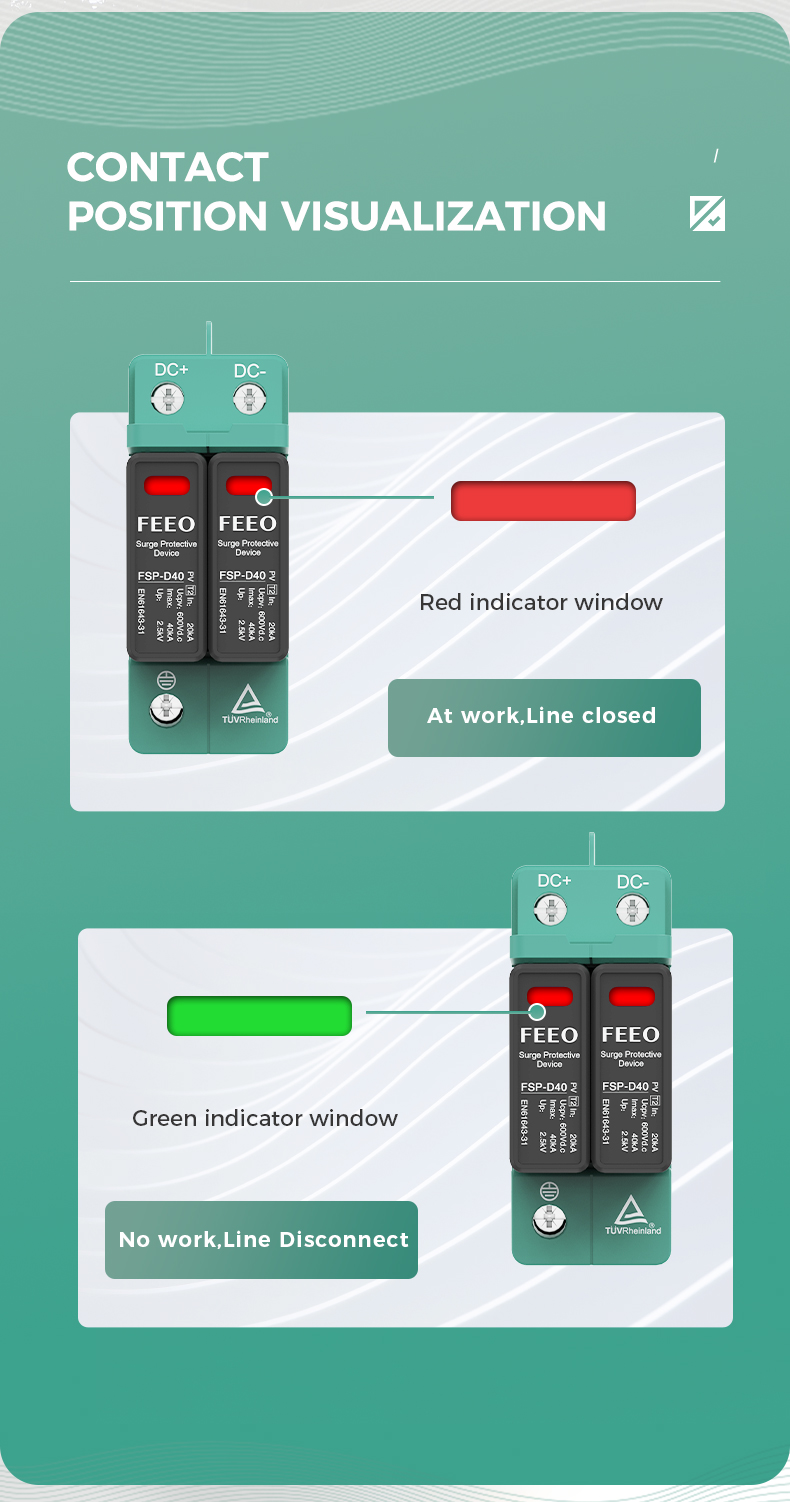

1.Indicator window is obvious (green is OK, red indicates failure)2.Fully enclosed terminal
3.The shell is made of PC flame retardant material, fire insulation
4.Replaceable module

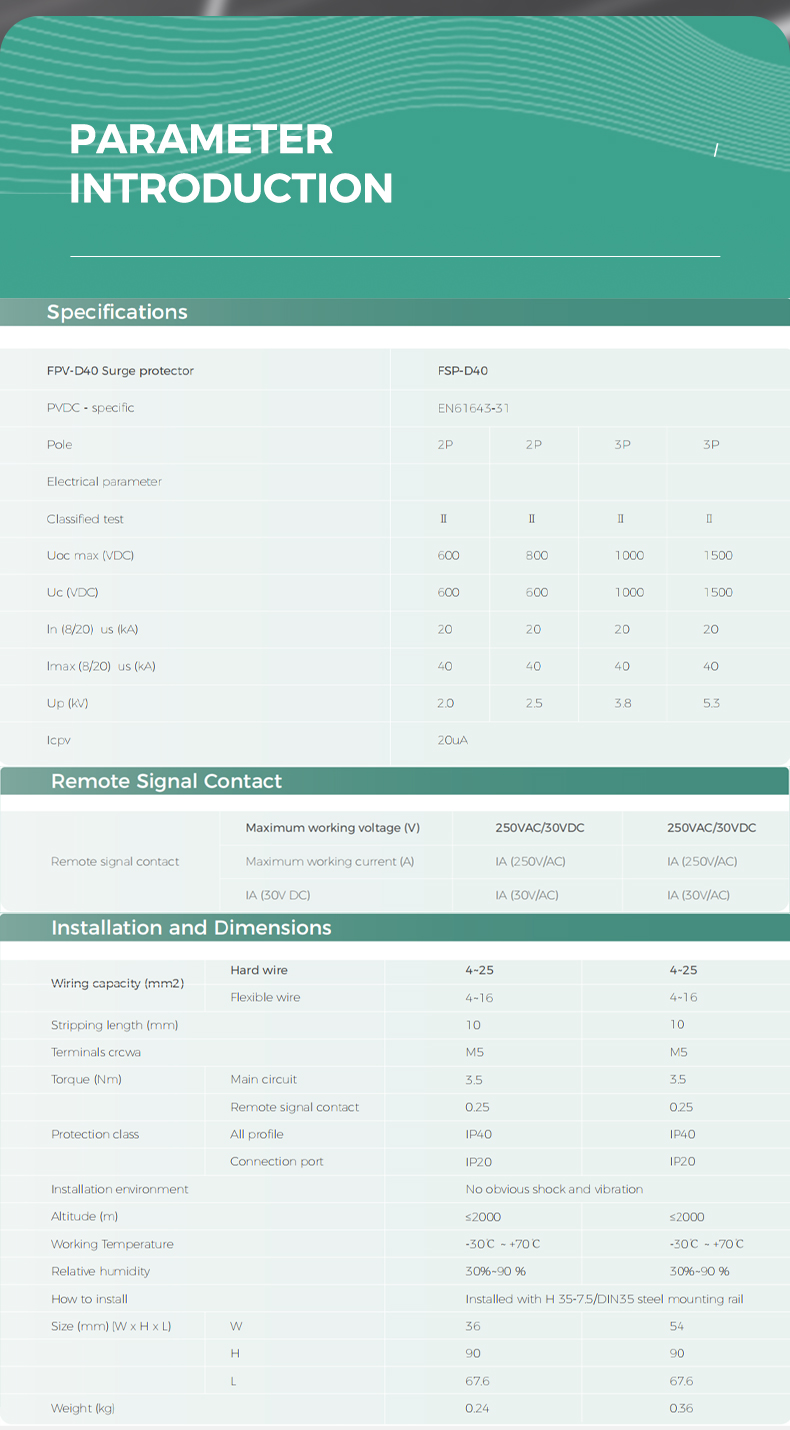

| FSP-D40 Surge protector | FSP-D40 | |||
| PVDC - specific ( IEC61643-1 /EN61643 -11 ) | ||||
| Pole | 2P | 2P | 3P | 3P |
| Electrical parameter | ||||
| Classified test | II | II | II | II |
| Uoc max (VDC ) | 600 | 800 | 1000 | 1500 |
| Uc ( VDC ) | 600 | 800 | 1000 | 1500 |
| ln (8 /20 )us ( kA ) | 20 | 20 | 20 | 20 |
| lma x (8 /20 )us ( kA ) | 40 | 40 | 40 | 40 |
| Up ( kV ) | 2 | 2.5 | 3.8 | 5.3 |
| Customizable 12/24/48 (VDC ) | 12/24/48 | |||
