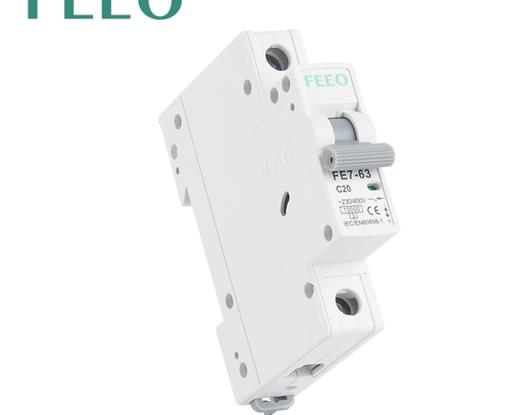

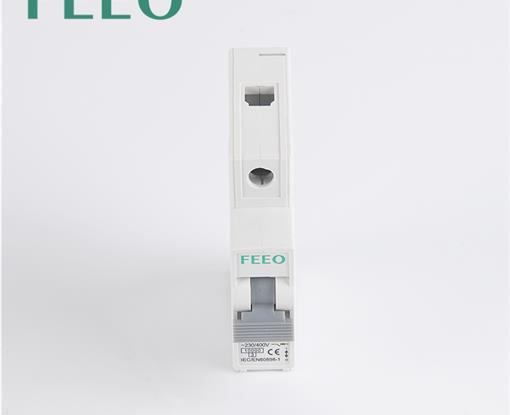

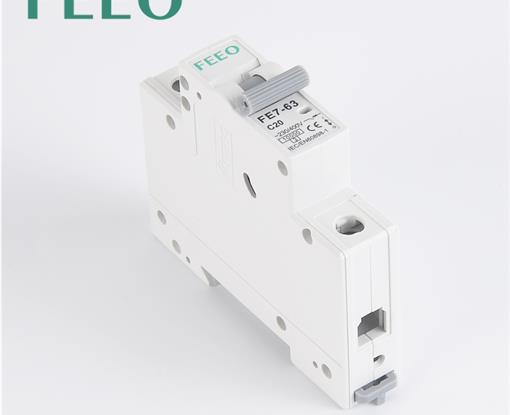

AC MCB Circuit Breaker 10KA Prices 63 Amp Circuit Breaker Mcb 1P 63A

FE7-63 have protective function as overload,and are used in lighting distribution system in industry commerce and dwelling,and protect fractional electric motors.And they also have many merits of high protective grade(up to IP20),high breaking capacity,reliable sensitive,action convenient,multi pole assembling,long life ect.The are mainly adapted to the circuit of AC 50Hz,250V in single pole,415V in double,three, four poles for protecting overload and short circuit.Mean while, they are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions.


Yueqing Feeo Electric Co.,Ltd is one of the professional China 2p ac mcb manufacturers and suppliers, if you are going to check the price with one 2p ac mcb factory in China, please feel free to contact us.

Product Description

FE7-63  MCB is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the systems.

2)This product is novel in structure, light in weight, reliable and excellent in performance.

3)It has high breaking capacity and can trip quickly. Its case and body are made of highly fire-retardant and shockproof plastic.
4)This product, with long life, is mainly used in AC 50Hz / 60Hz single-pole 240V or
two / three / four-pole 415V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment

and lighting circuit in normal cases. This product conforms to GB10963 and IEC60898 standards.

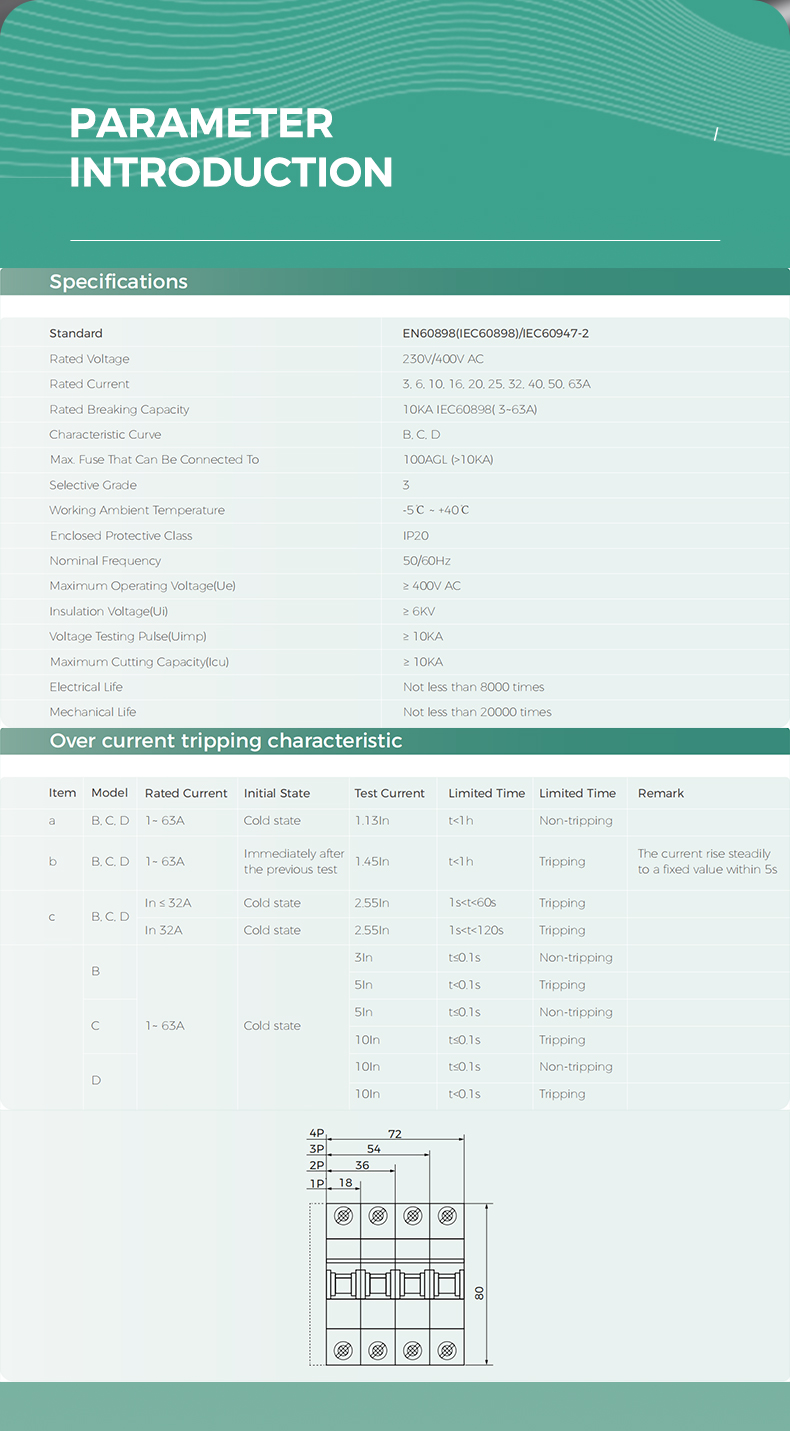

Standard

EN60898(IEC60898)IEC60947-2

Rated Current

250V/415V

Rated Breaking Capacity

6,10KA IEC60898(0.5~63A)

Characteristic Curve

B, C, D

Max. Fuse That Can Be Connected To

100AGL(>10KA)

Selective Grade

3

Working Ambient Temperature

-5℃ ~+40℃

Enclosed Protective Class

IP20

Electrical Life

Not less than 8000 times

Mechanical Life

Not less than 20000 times
