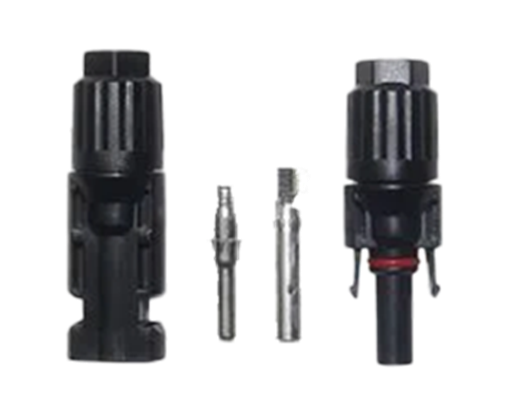

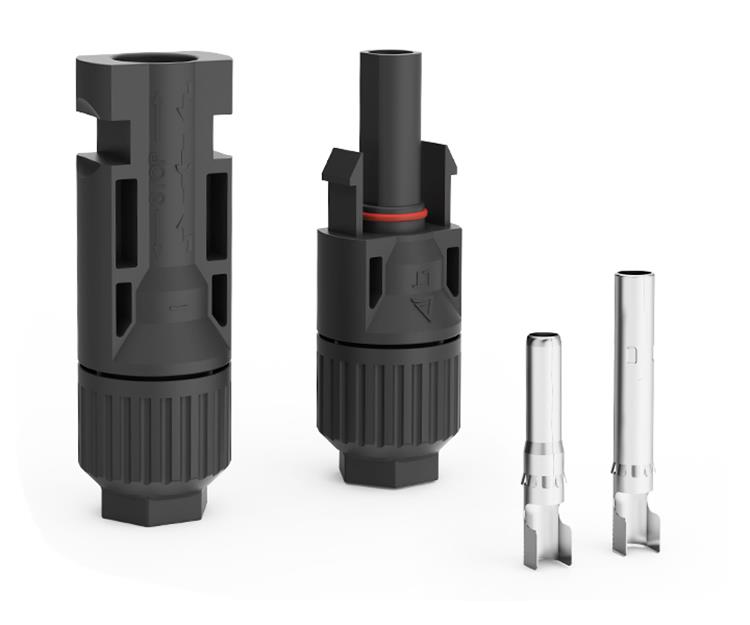

IP67 MC4 Solar Connector 1000v/1500v 30A

FMC4

Product Description

1.Simple on-site processing.
2.Accommodating PV cable with different insulation diameters.
3.Mating safety provided by keyed housings.
4.Multiple plugging and unplugging cycles.
5.High current carrying capacity.
6.Protection class IP67 suitable for outdoor harsh environments

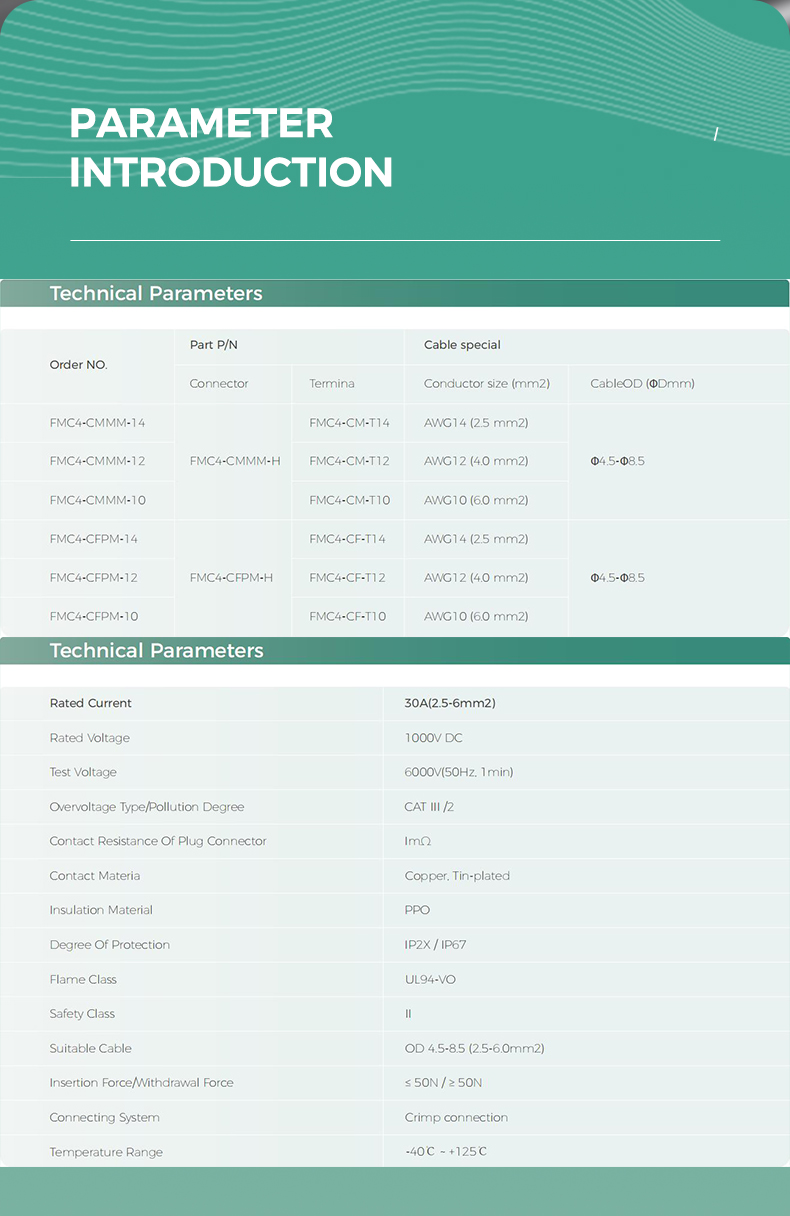

Product name Solar Connector
Rated current 30A(4-6mm2)
Rated Voltage 1000VDC 1500VDC
Test Voltage 6000V(50Hz, 1min)
Overvoltage Type/Pollution Degree CAT III /2
Contact Resistance Of Plug Connector ImΩ
Contact Materia Copper, Tin-plated
Insulation Material PPO
Degree Of Protection IP2X / IP67
Suitable Cable 4-6.0mm2
Connecting System Crimp connection
Temperature Range -40℃ ~ +125℃
Certificate IEC/TUV/CE
Application PV Solar System
Warranty 2 Years
Mounting cable mounting
