SOLAR CONNECTOR Feature:
Simple on-site processing.
Accommodate PV cable with different insulation diameters.
Mating safety provided by keyed housings.
Multiple plugging and unplugging cycles .
High current carrying capacity.
TUV and UL approved.

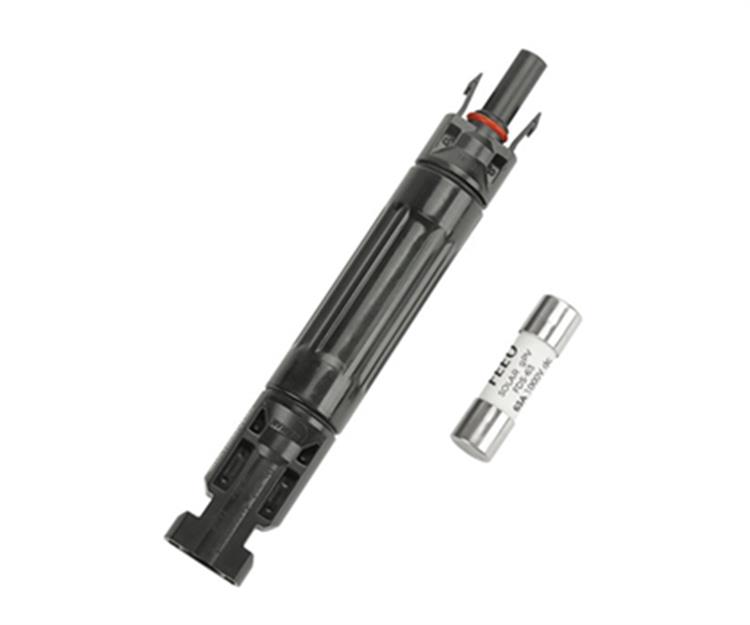

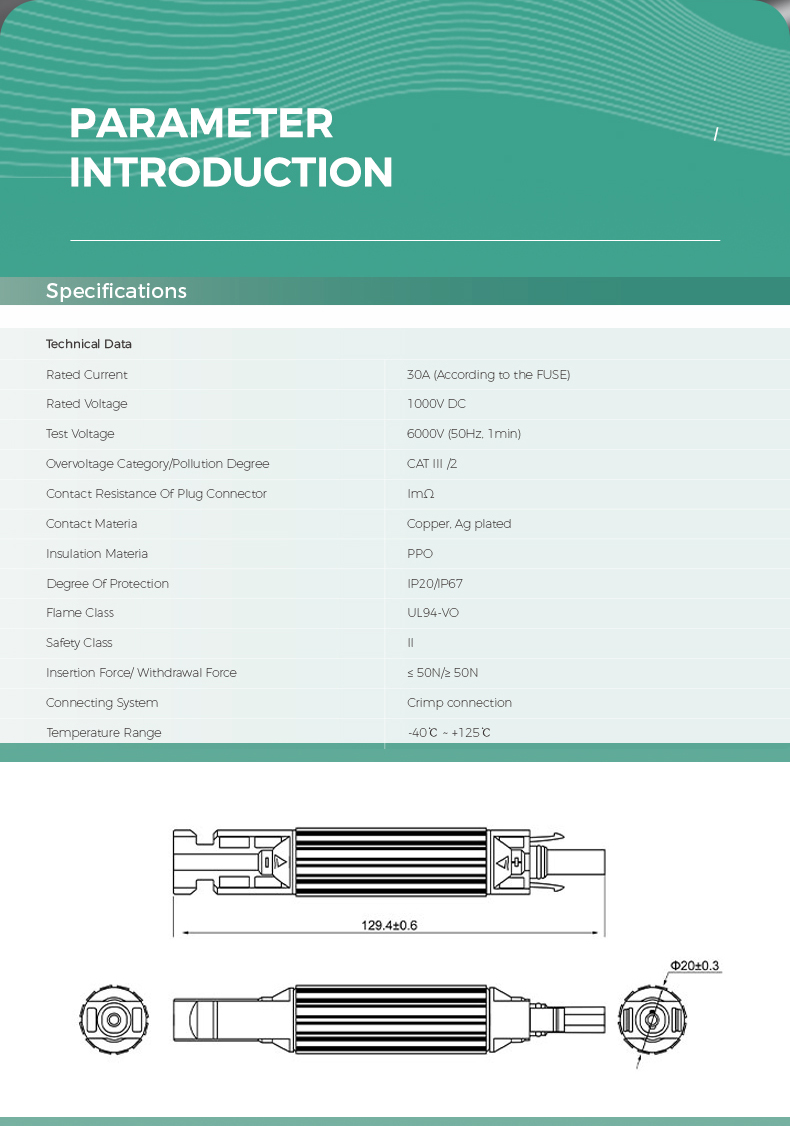

Product name

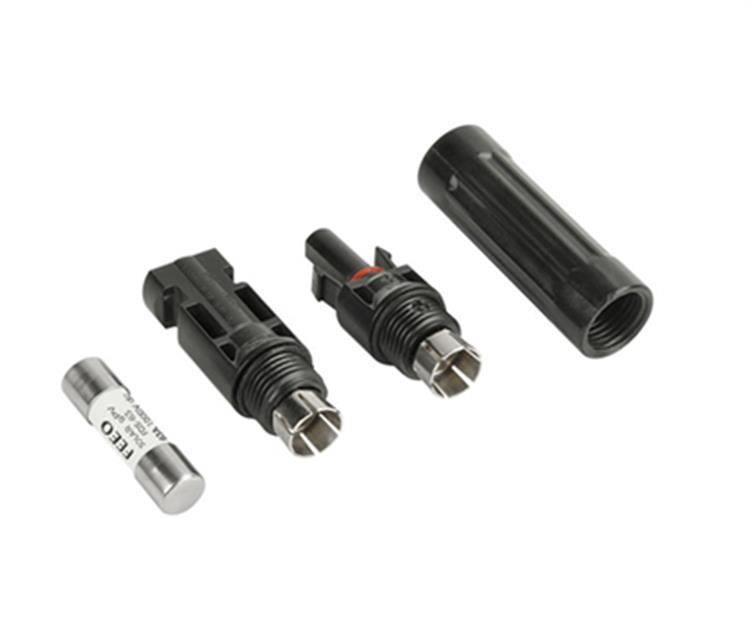

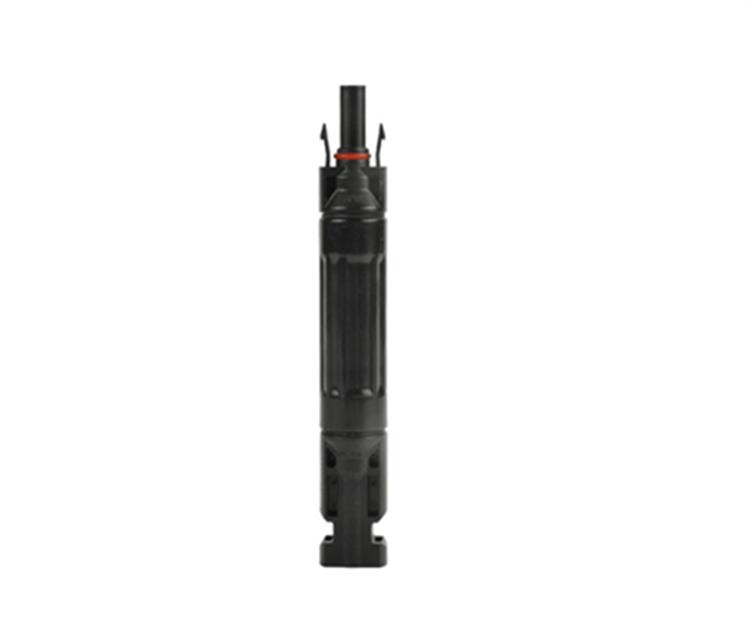

Solar Fuse Connector
Rated current
30A (According to the FUSE)
Rated Voltage
1000VDC
Test Voltage
6000V(50Hz, 1min)
Overvoltage Type/Pollution Degree
CAT III /2
Contact Resistance Of Plug Connector
ImΩ
Contact Materia
Copper, Ag plated
Insulation Material
PPO
Degree Of Protection
IP2/IP67
Suitable Cable
-
Connecting System
-
Temperature Range
-40℃ ~ +125℃
Certificate
CE
Application
PV Solar System
Warranty
2 Years
Mounting
cable mounting
