Max shut down one or two strings modules
Maximum circuit current 55A
Maximum cricuit voltage 1500vdc

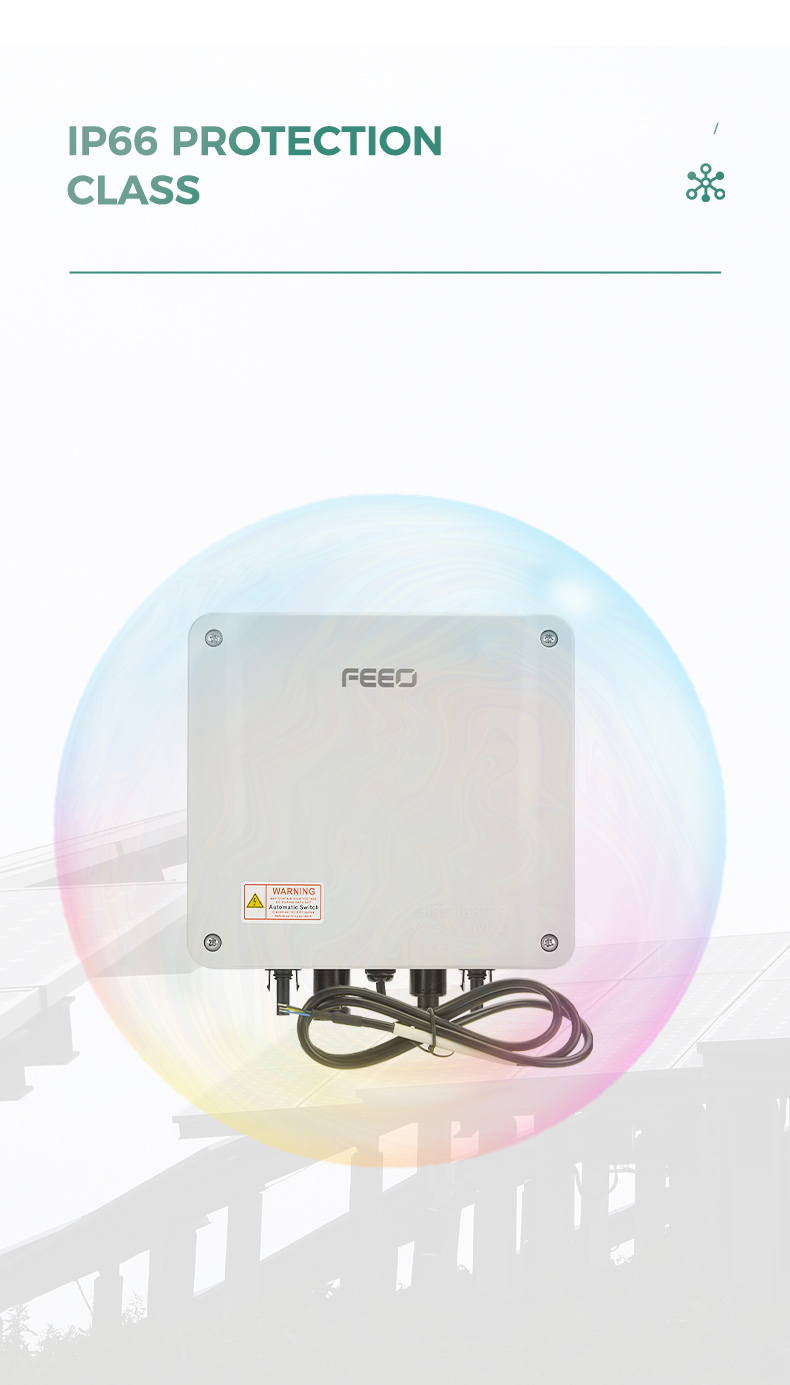

PC+ABS material, IP66 protection grade
Multi clock interface type optional (knockout hole/gland/MC4 terminal)
Waterproof Vent valve to avoid condensation inside the shell
Advanced temperature sensor is used to detect the highest temperature in the shell in real time temperature, when the internal temperature exceeds 70 degrees, automatic cut-off switch

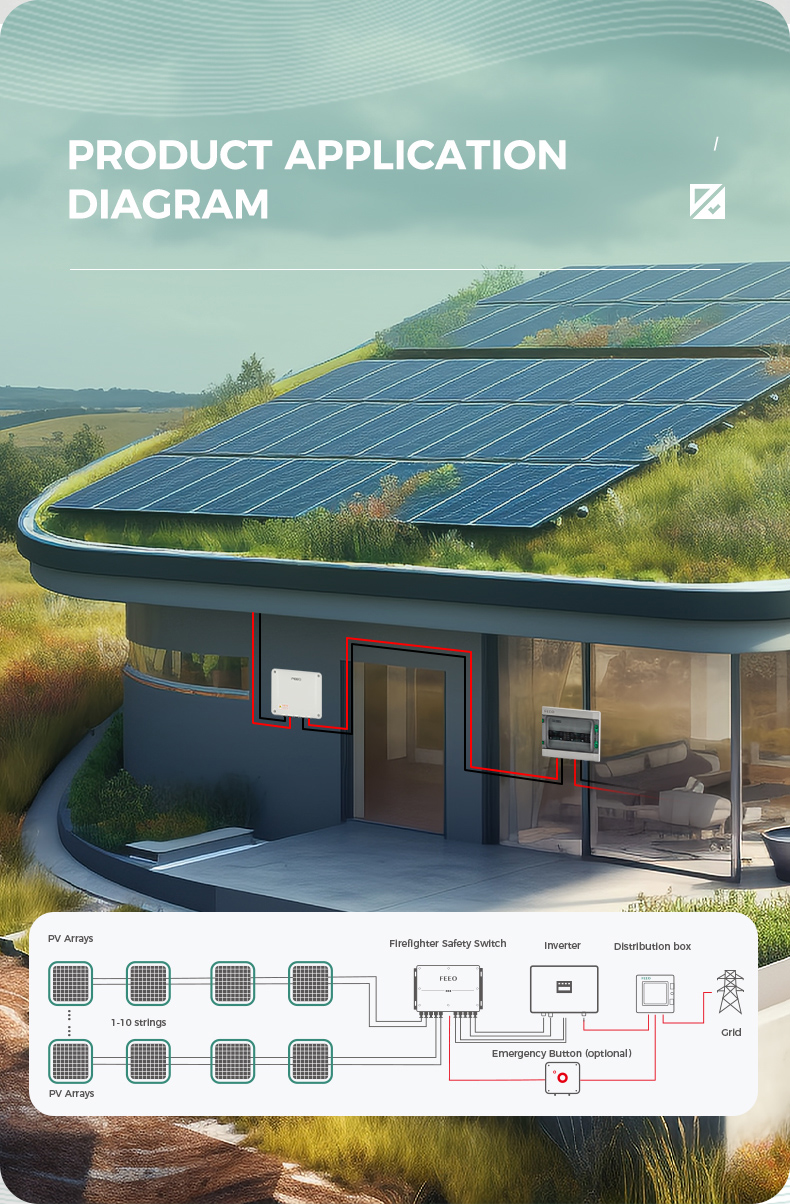

lt is suitable for residential, industrial and commercial photovoltaic systems

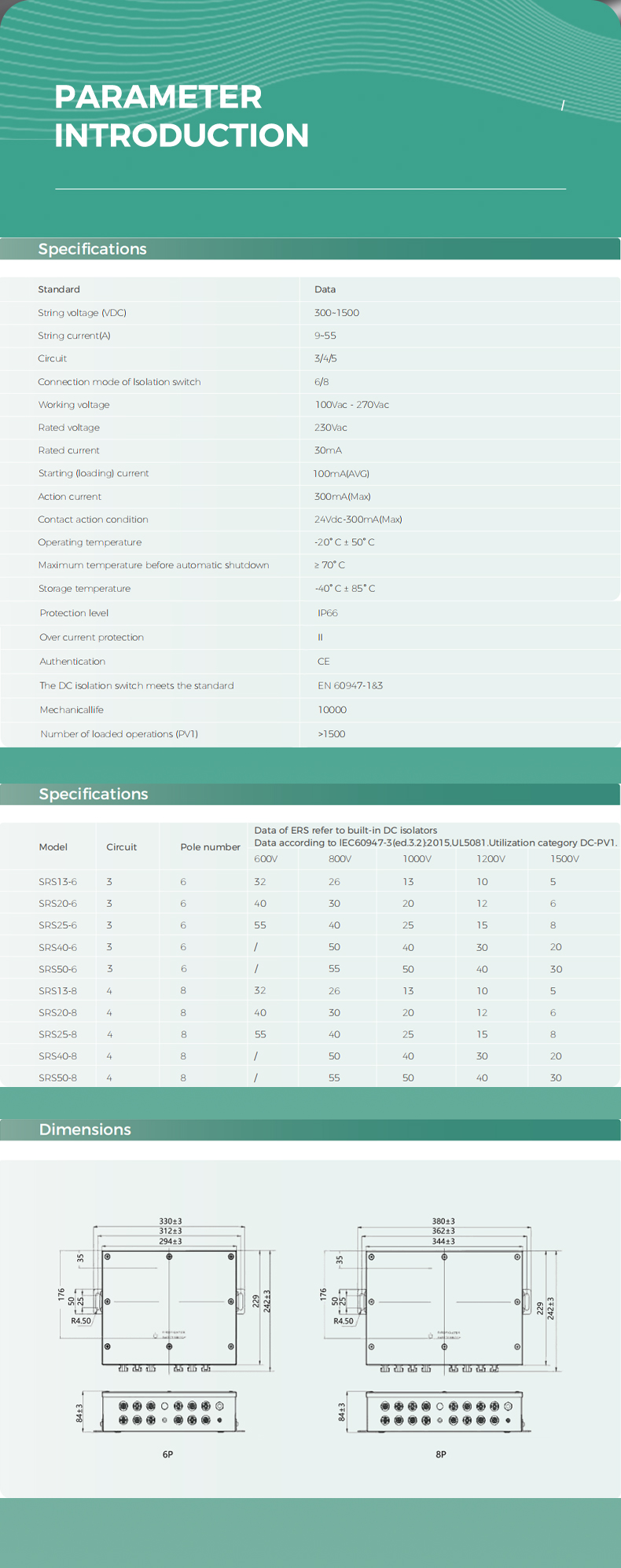

| Model | FRS-1 | FRS-2 | FRS-3 | FRS-4 | FRS-5 |
| String voltage (VDC) | 300~1500 | 300~1500 | 300~1500 | 300~1500 | 300~1500 |
| String current(A) | 9~55 | 9~55 | 9~55 | 9~55 | 9~55 |
| Connection mode of lsolation switch | 2/4/4B | 2/4/4B | 6/8 | 6/8 | 6/8 |
| Working voltage | 100Vac - 270Vac | 100Vac - 270Vac | 100Vac - 270Vac | 100Vac - 270Vac | 100Vac - 270Vac |
| Rated voltage | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac |
| Rated current | 30mA | 30mA | 30mA | 30mA | 30mA |
| Starting (loading) current | 100mA(AVG) | 100mA(AVG) | 100mA(AVG) | 100mA(AVG) | 100mA(AVG) |
| Action current | 300mA(Max) | 300mA(Max) | 300mA(Max) | 300mA(Max) | 300mA(Max) |
| Operating temperature | -20° C ± 50° C | -20° C ± 50° C | -20° C ± 50° C | -20° C ± 50° C | -20° C ± 50° C |
| Maximum temperature before automatic shutdown | ≥ 70° C | ≥ 70° C | ≥ 70° C | ≥ 70° C | ≥ 70° C |
