Product Description：

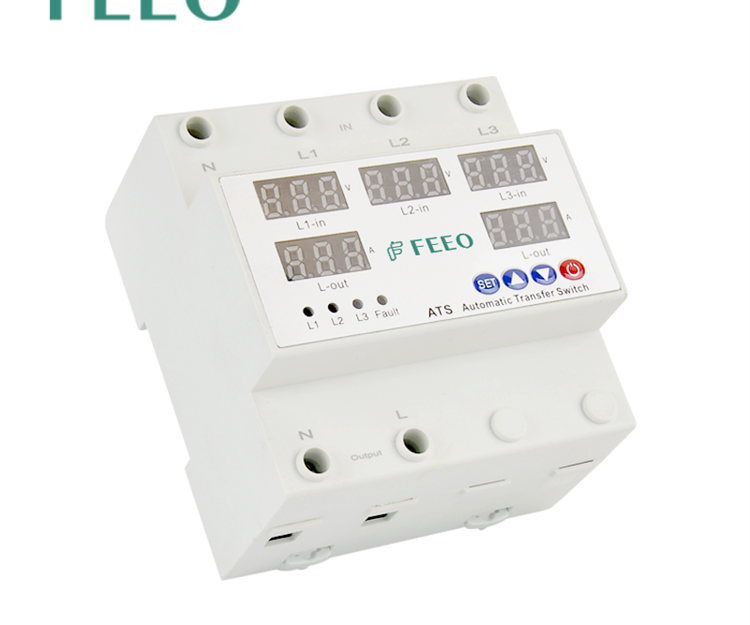

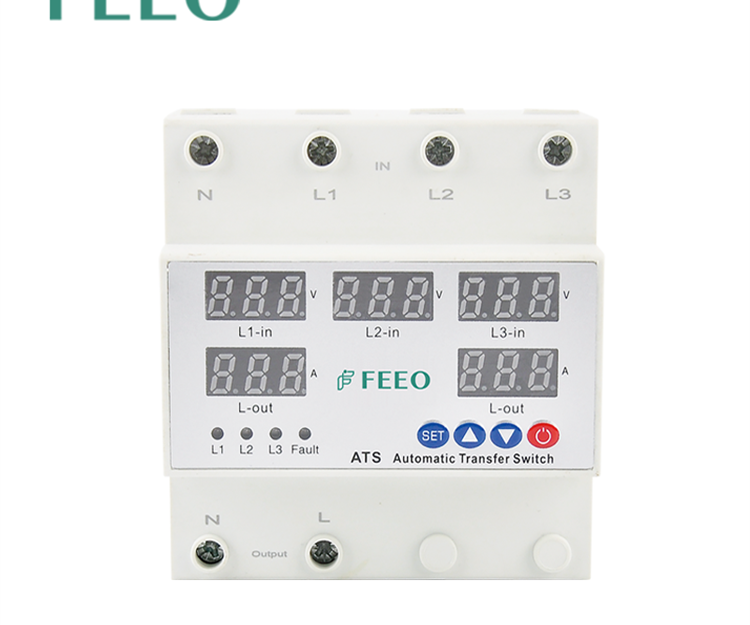

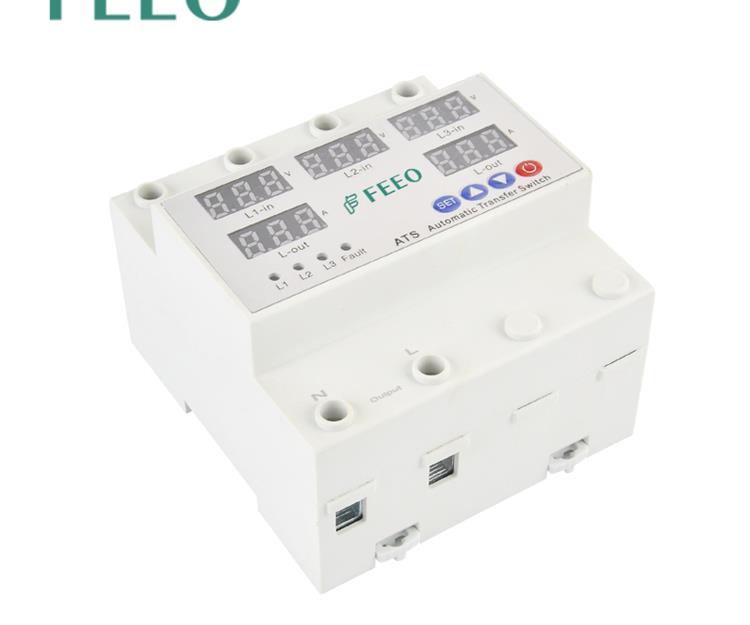

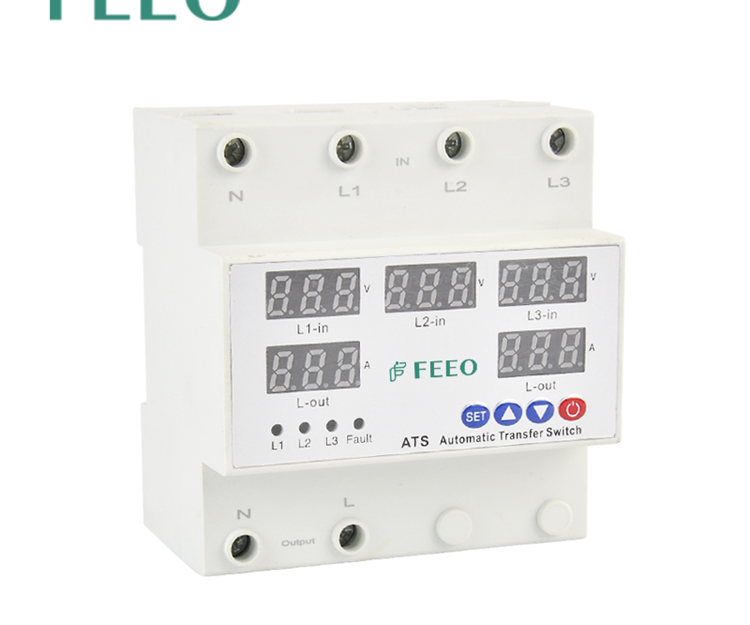

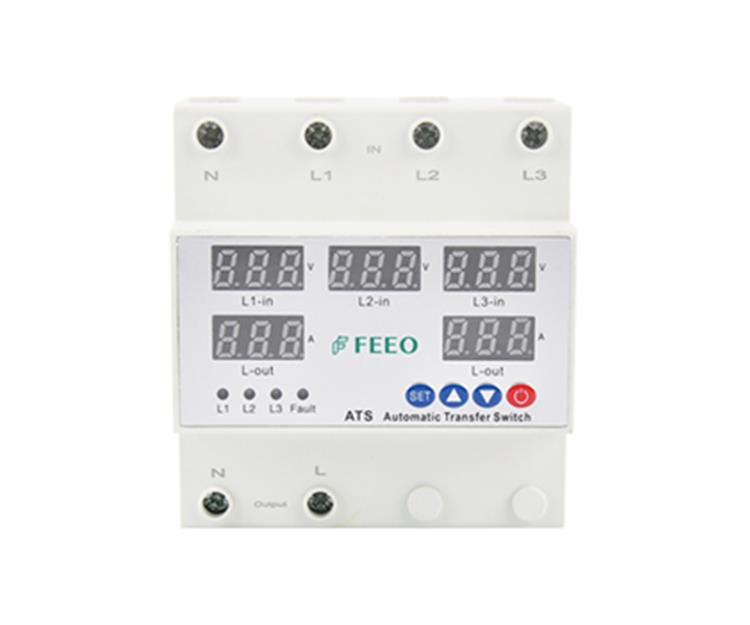

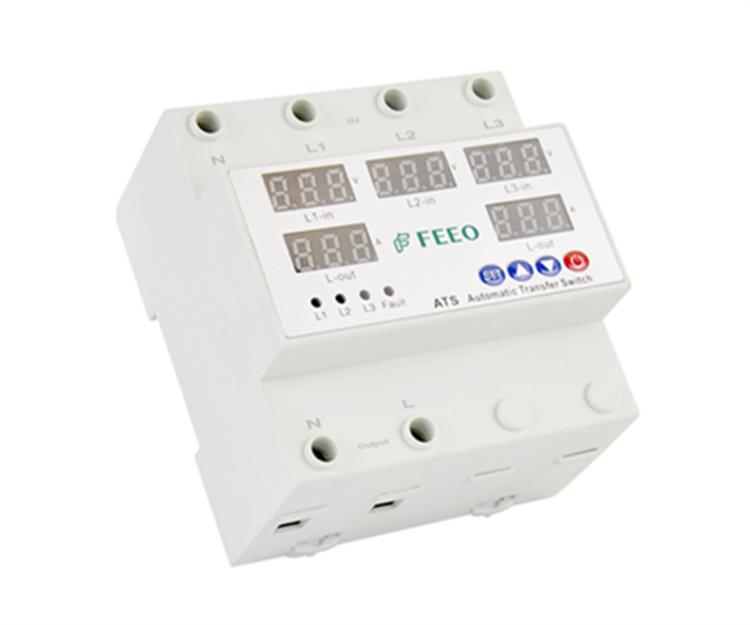

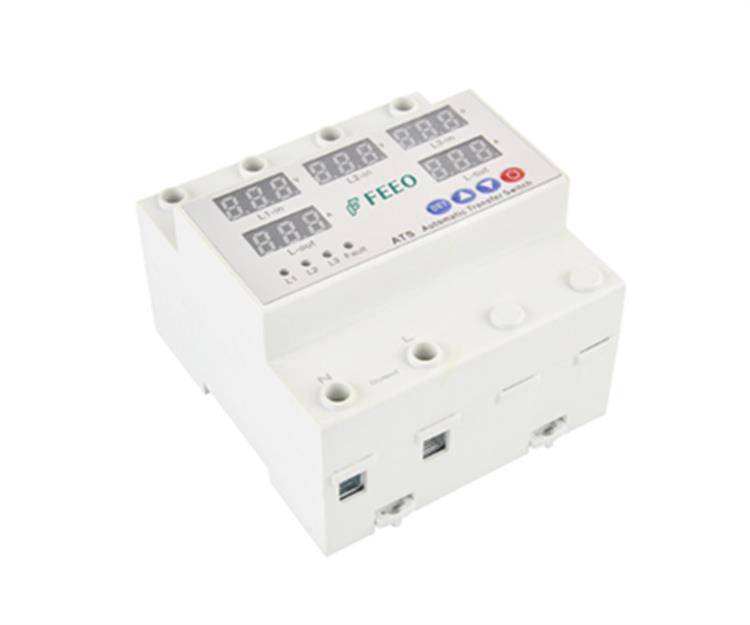

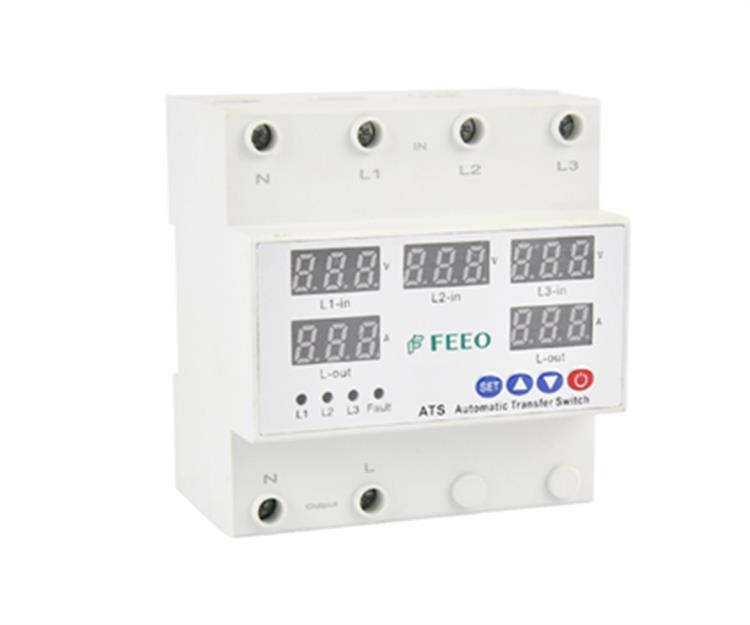

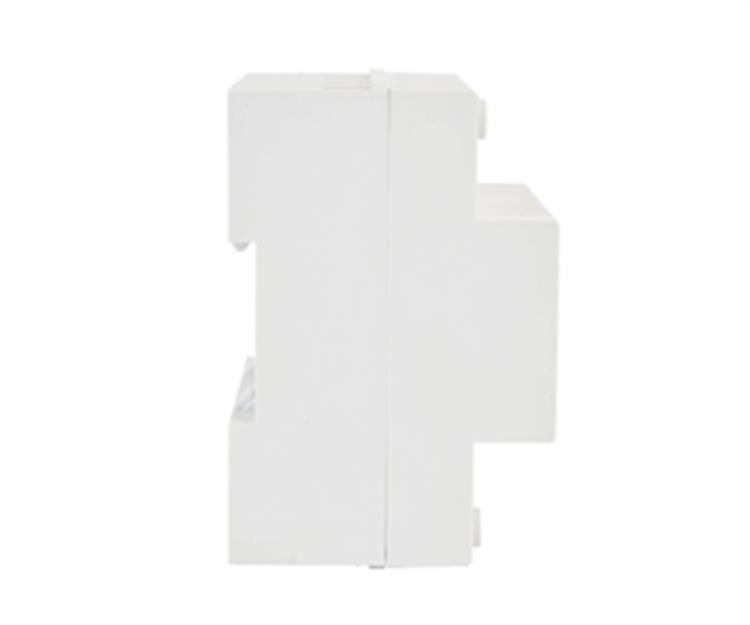

FCTS-63 ATS intelligent transfer switch is designed to supply an single phase 220V load from different power supply, in order to maintain uninterrupted power supply of essential single phase load. According to voltage presence & voltage quality on phases, it will automatically select the optimum power supply and switch the single phase load supply to it.
|
Supply Terminals |
N,L1,L2,L3 |
|
Rated Supply Voltage |
AC220V |
|
Rated Frequency |
50/60HZ |
|
Umax Setting Range |
230-300V |
|
Umin Setting Range |
140-210V |
|
Max.Operating Phase Voltage |
350V |
|
Rated Operating Current |
63A |
|
Max.Operating Current |
80A |
